Birtley Extra Heavy Duty - Single Leaf Internal Wall Lintel 140mm SB140HDX

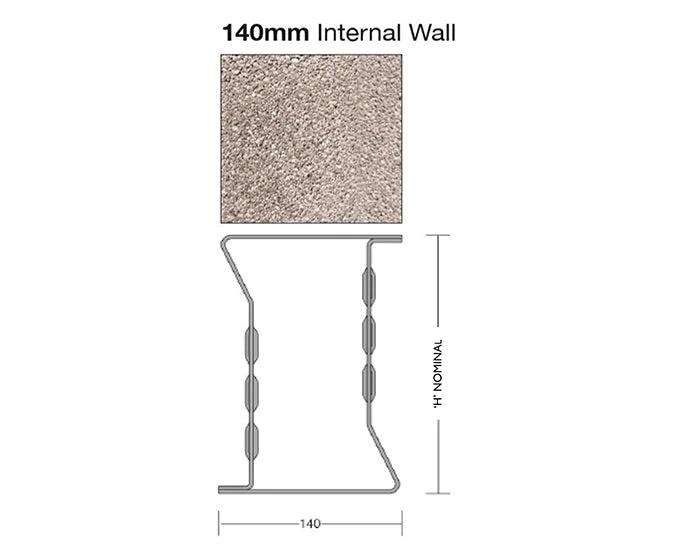

Product image 1
1 / 2

Birtley Extra Heavy Duty - Single Leaf Internal Wall Lintel 140mm SB140HDX

Birtley SB140HDX Extra Heavy Duty – Single Leaf Internal Wall Lintel

Loadbearing Walls – Internal block walls (plastered)

Cavity: 140mm

Insulated version available.

Features

  • We are the only lintel manufacturer to hot-dip galvanise after fabrication providing up to 50% more zinc protection than other approved coatings
  • Supergalv coating offers a superior life expectancy
  • Post-fabrication galvanising leaves no surface with inferior paint protection
  • Available in span lengths from 750mm to 2700mm.
Brand: Birtley
Generic Ref: SB140HDX
Product Range: Single Leaf Internal Walls
Product Type: Extra Heavy Duty Internal Wall Box Lintel - 140mm Block
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016

Notified Body: Lucideon Ltd (NB 1289)
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanised to BS EN ISO 1461:2009

Thermal Performance: Contact us for information
Insulation: OPTIONAL - Expanded Polystyrene - BREEAM rating A+
Fire Rating: 60 mins (with 2 coat plaster finish)

1. Installation requirement: Bed fully on bricklaying mortar
2. Installation requirement: Must be used with a cavity tray - External walls only
3. Installation requirement: 150mm Minimum end bearing

Sales Qty: 1
Packaging weight: 0
1. Features: Supergalv coating offers superior life expectancy
2. Features: Post-fabrication galvanising leaves no surface with inferior paint protection
3. Features: Structural grade steel to EN10025
Option 1: Alternative material options: Ultragalv coating (150µm), Stainless Steel 1.4301 (304)
Option 2: Add Insulation (INS)
Select Size
From $42.38

Original: $121.10

-65%
Birtley Extra Heavy Duty - Single Leaf Internal Wall Lintel 140mm SB140HDX—

$121.10

$42.38

Product Information

Shipping & Returns

Description

Birtley SB140HDX Extra Heavy Duty – Single Leaf Internal Wall Lintel

Loadbearing Walls – Internal block walls (plastered)

Cavity: 140mm

Insulated version available.

Features

  • We are the only lintel manufacturer to hot-dip galvanise after fabrication providing up to 50% more zinc protection than other approved coatings
  • Supergalv coating offers a superior life expectancy
  • Post-fabrication galvanising leaves no surface with inferior paint protection
  • Available in span lengths from 750mm to 2700mm.
Brand: Birtley
Generic Ref: SB140HDX
Product Range: Single Leaf Internal Walls
Product Type: Extra Heavy Duty Internal Wall Box Lintel - 140mm Block
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016

Notified Body: Lucideon Ltd (NB 1289)
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanised to BS EN ISO 1461:2009

Thermal Performance: Contact us for information
Insulation: OPTIONAL - Expanded Polystyrene - BREEAM rating A+
Fire Rating: 60 mins (with 2 coat plaster finish)

1. Installation requirement: Bed fully on bricklaying mortar
2. Installation requirement: Must be used with a cavity tray - External walls only
3. Installation requirement: 150mm Minimum end bearing

Sales Qty: 1
Packaging weight: 0
1. Features: Supergalv coating offers superior life expectancy
2. Features: Post-fabrication galvanising leaves no surface with inferior paint protection
3. Features: Structural grade steel to EN10025
Option 1: Alternative material options: Ultragalv coating (150µm), Stainless Steel 1.4301 (304)
Option 2: Add Insulation (INS)
