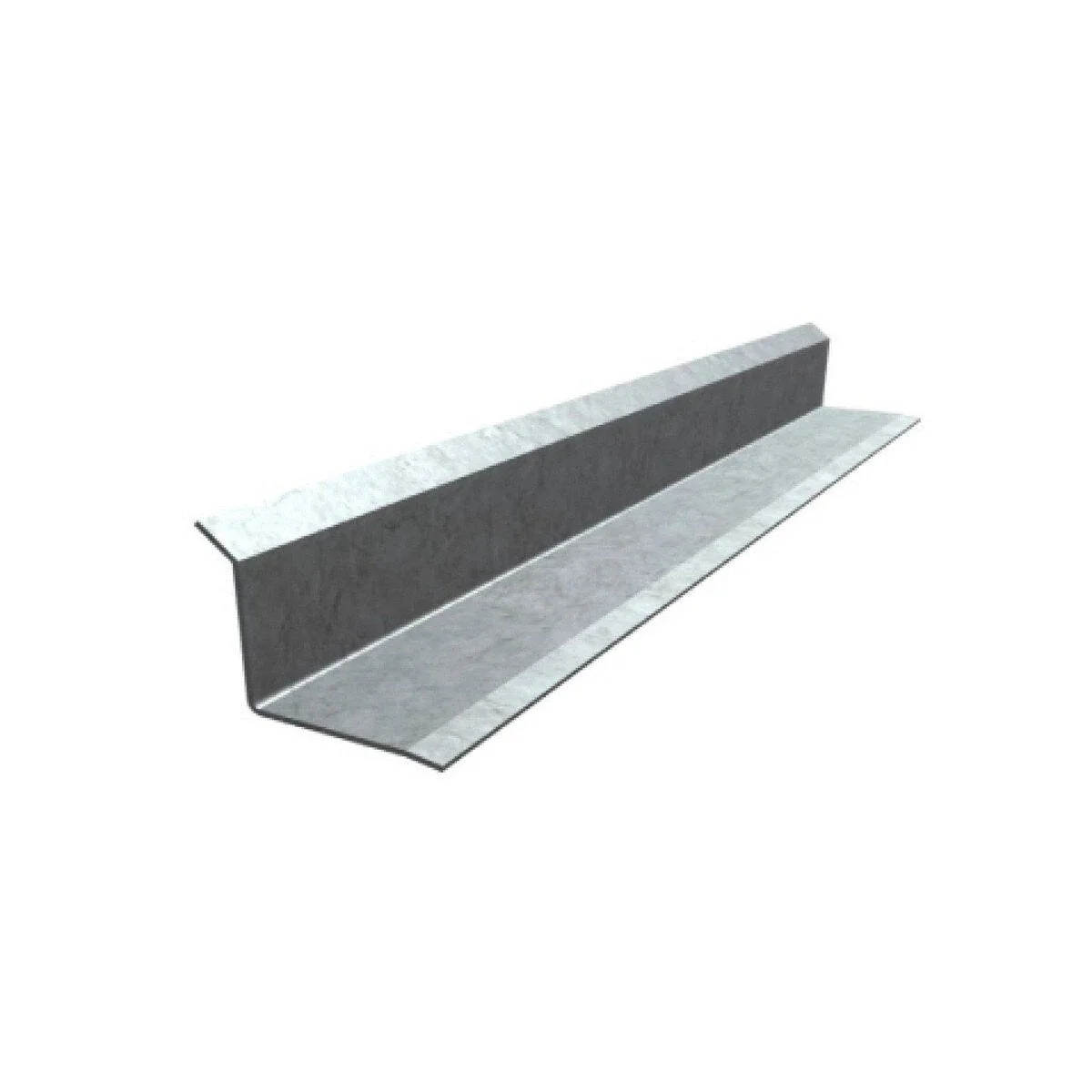

Birtley External Wall Angle Lintel 100mm LA

Birtley Single Leaf Angle Lintel offers superior structural support and long-term durability. This external wall lintel benefits from an innovative galvanising process. The standard duty wall lintel undergoes hot-dip galvanisation after fabrication to provide up to 50% more zinc protection than other/similar approved coatings for steel lintels. The post-fabrication galvanisation process covers every inch of this single-leaf angle lintel, boosting the overall life expectancy of the product.

Lintel Features:

• Better Protection: This single leaf lintel delivers a robust performance due to its hot-dip galvanisation that provides up to 50% more zinc protection.
• Special Coating: Supergalv coating extends the life expectancy of the Birtley LA lintel, making it a reliable option for different construction requirements.
• Comprehensive Protection: Every part of the angle lintel is covered during the post-fabrication galvanizing process to ensure no surface suffers from poor paint protection.
• Available in span lengths from 750mm to 3900mm.



Installation Requirements:

• Bed fully on bricklaying mortar
• Must be used with a cavity tray - External walls only
• Lintels over 1500mm must be propped until masonry is fully loaded and cured.
