Wall Flange Kit 32mm MDPE + In-Line Valve
Compact MDPE wall flange kit for 32mm pipework, pairing a surface-mounted wall flange with a ¾" BSP in-line valve. It’s aimed at tradespeople and builders who need a reliable, easy-to-install connection to a flat surface for water supply or irrigation runs.

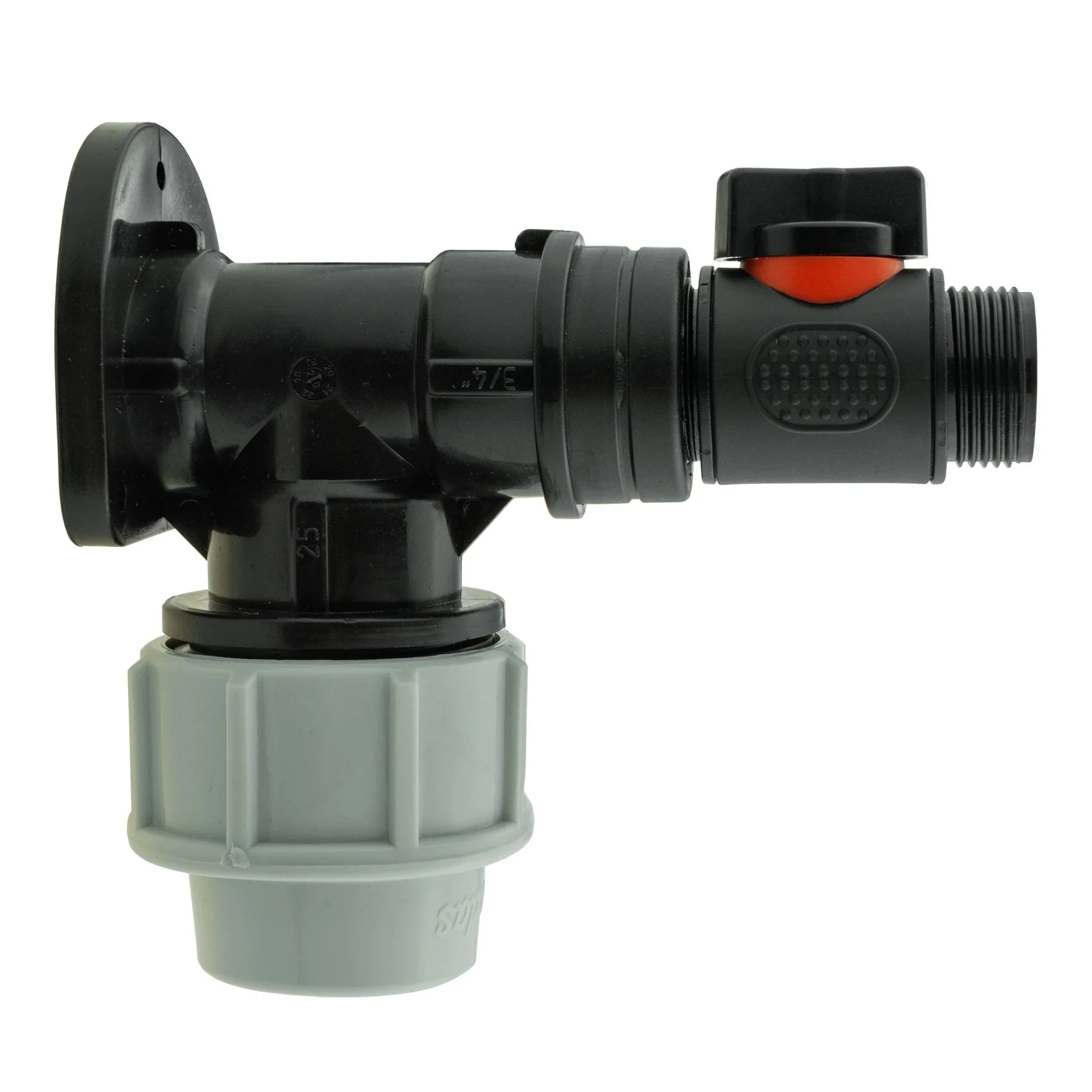

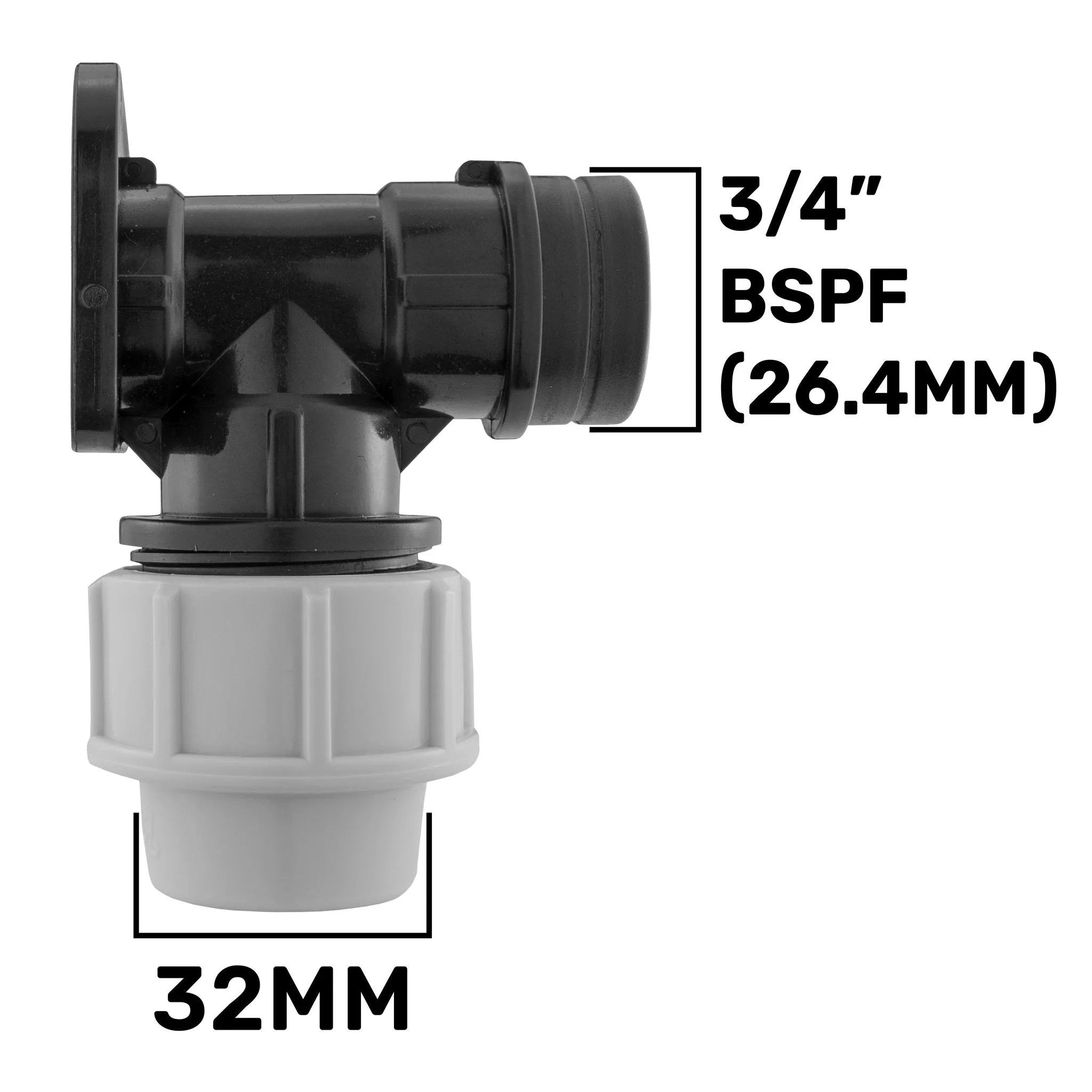

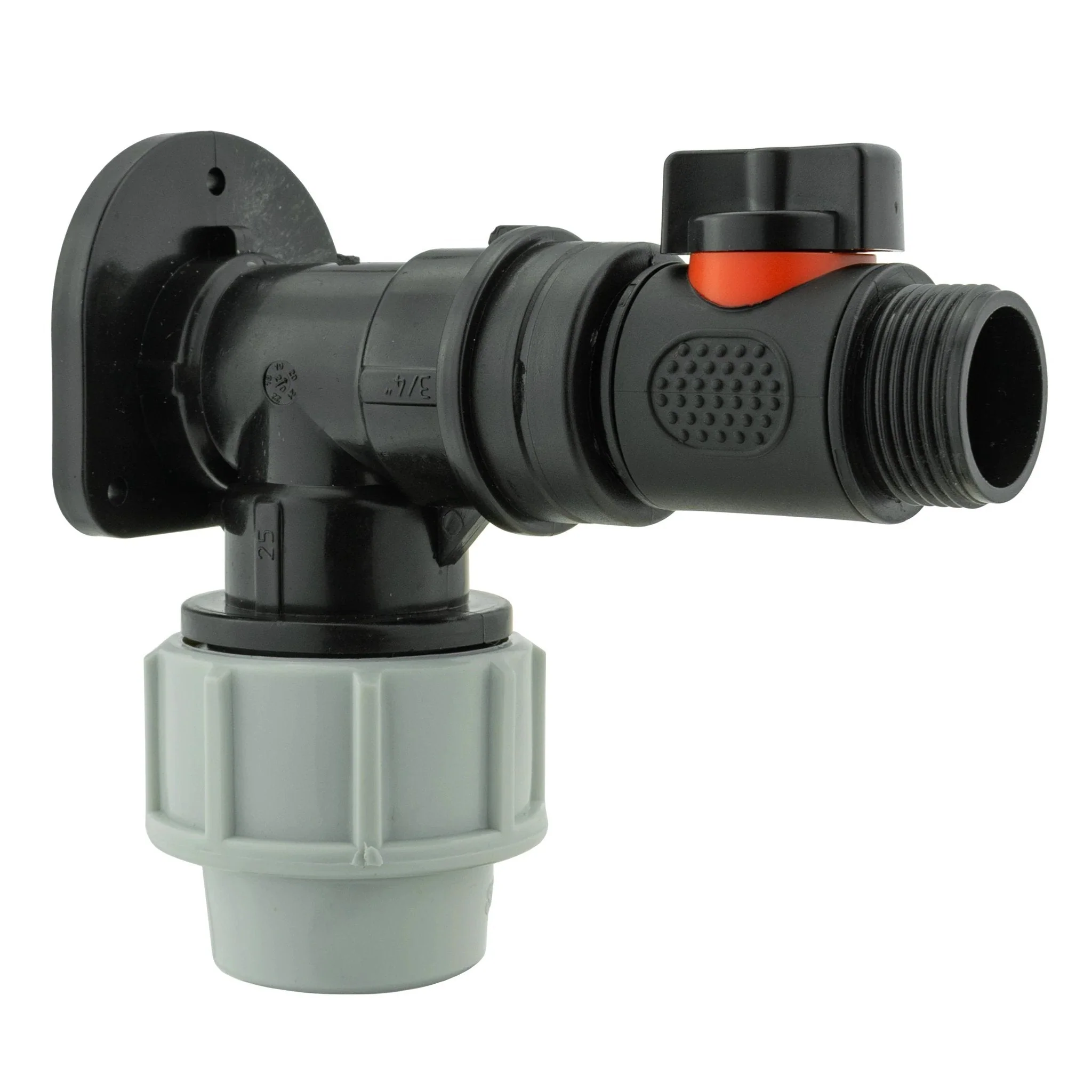

Contents: 1 x MDPE Wall Flange 32mm – ¾” BSP (MDPEWF32-34BSPF) and 1 x In-Line Valve ¾” BSP (HCV34BSPM001BLACK). The MDPE compression fittings provide a tight, leak-free seal without specialist tooling, making on-site installation straightforward. MDPE PN10 fittings are rated up to 10 bar (145 psi), offering robust performance in typical domestic and light commercial environments. The materials are chosen for durability, weather resistance and chemical resistance, reducing maintenance in outdoor or exposed locations.
Where this shines — attach the wall flange to a solid surface, feed 32mm MDPE pipe directly into the fitting, and utilise the inline valve to control flow without removing any components. This kit is well suited to outdoor taps, garden irrigation manifolds, or feed lines to outbuildings where a neat, termination point on a wall is beneficial and where simple, reliable operation matters.

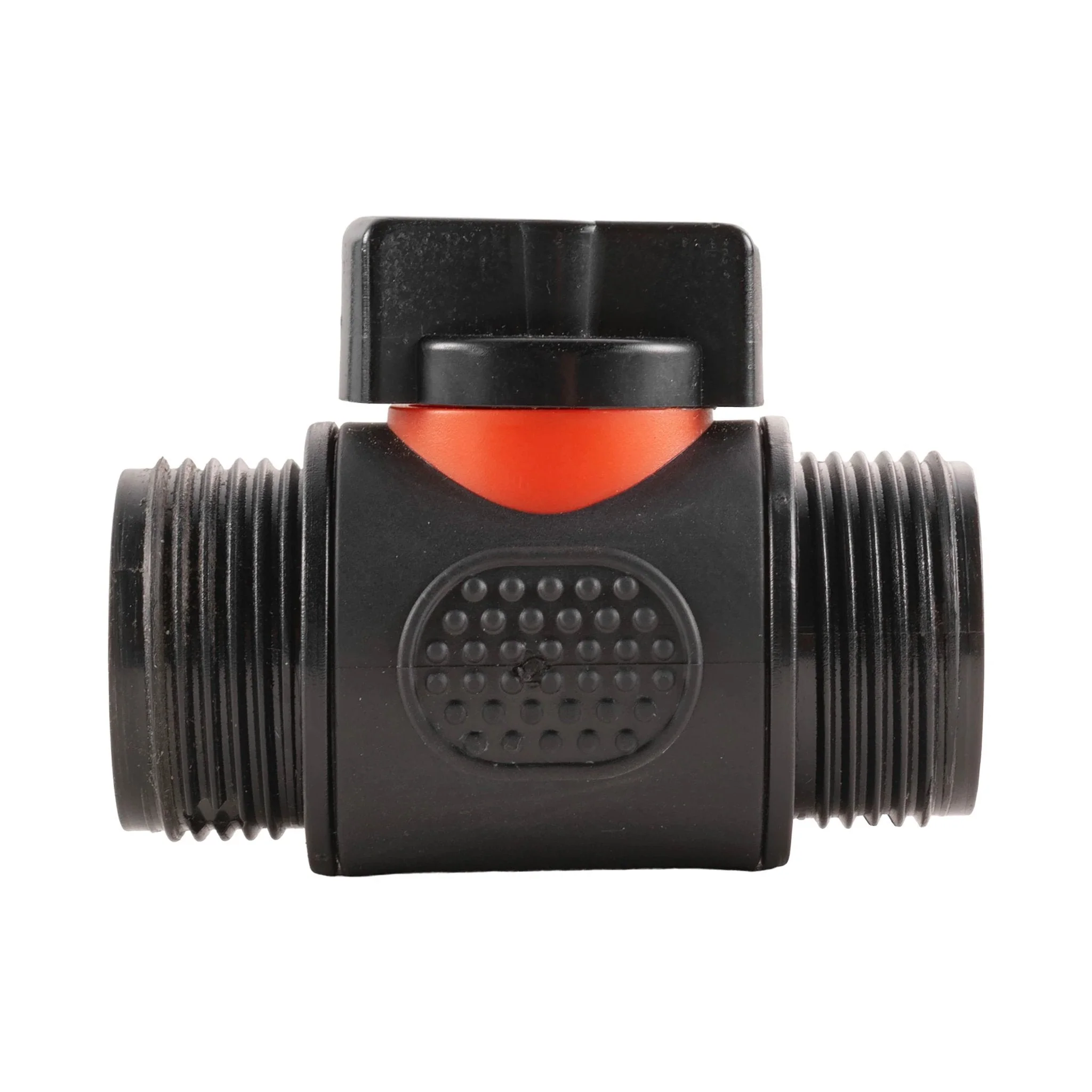

In-line valve — the ¾" BSP male inlet and outlet is built from durable plastic, providing a lightweight, corrosion-resistant flow control device. The soft-touch mechanism allows smooth, precise operation, helpful in settings where the valve needs to be adjusted frequently, such as irrigation or seasonal water feeds. The plastic construction helps minimise weight and makes handling easier on a busy site, with resistance to corrosion and scale build-up supporting longer service intervals.
Tips and notes — this kit does not include PTFE tape; tape must be purchased separately. For best results, ensure proper alignment of the MDPE pipe with the wall flange and provide adequate support for both the pipe and the mounted valve. This kit delivers a practical, reliable, surface-minstallable solution for 32mm MDPE piping with straightforward flow control.
