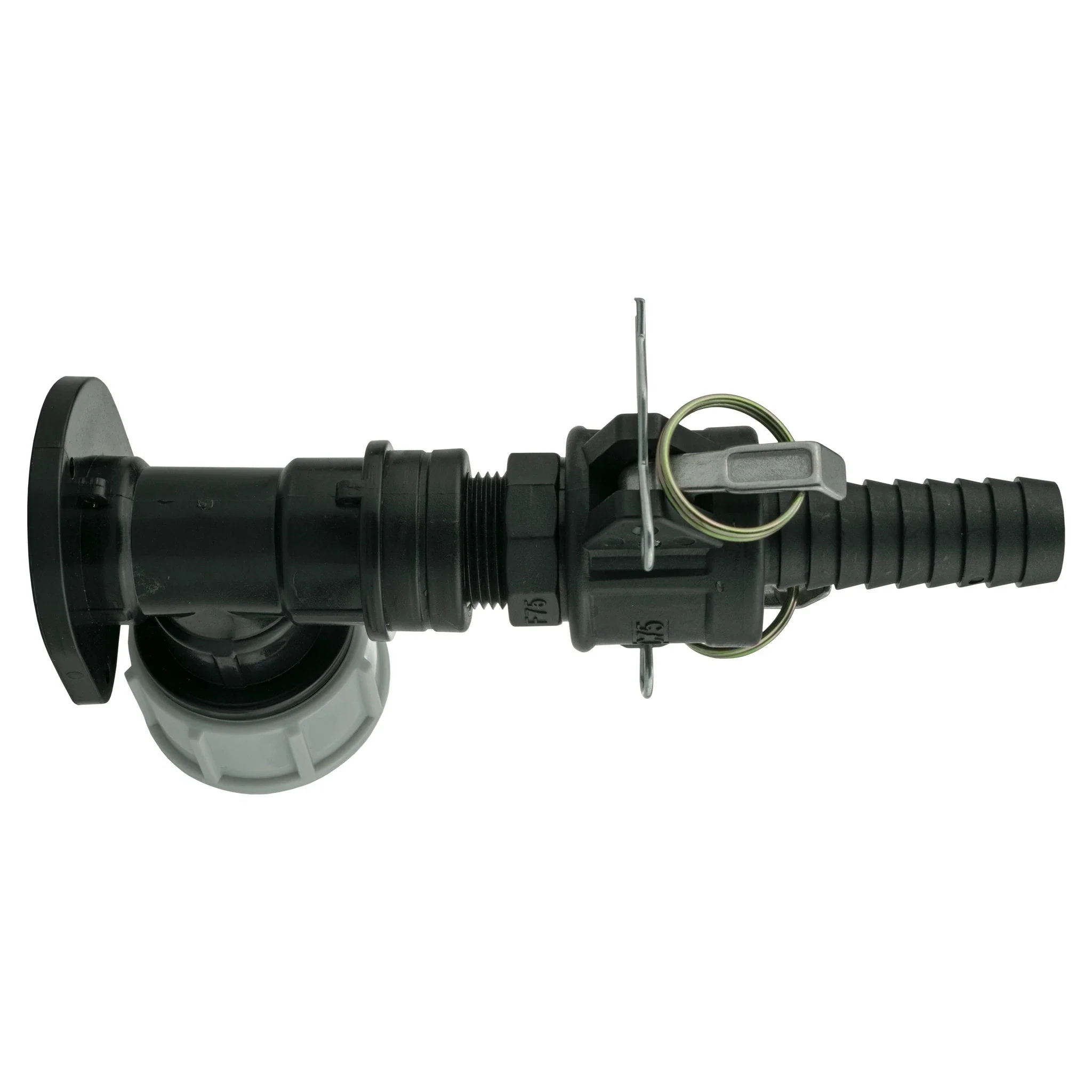

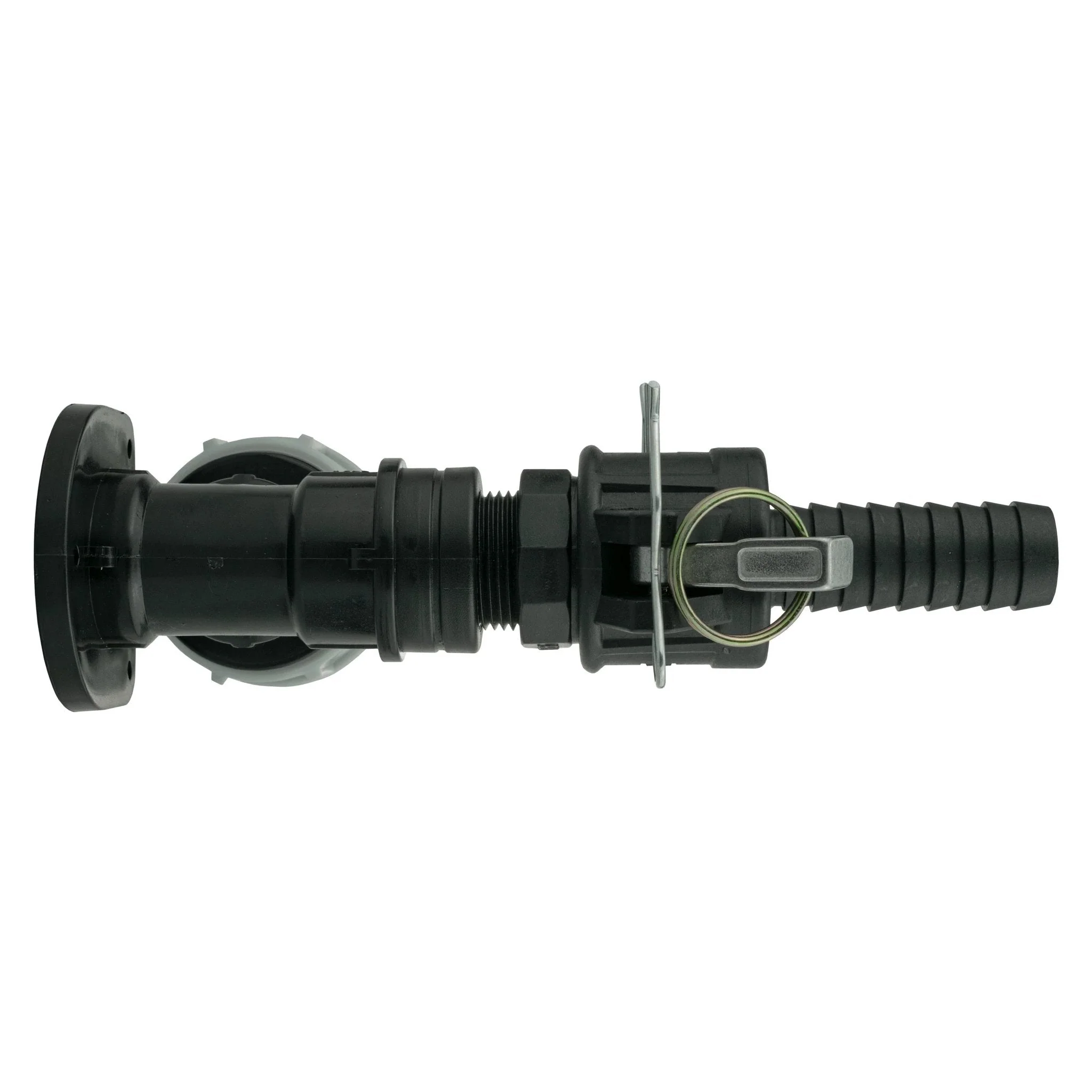

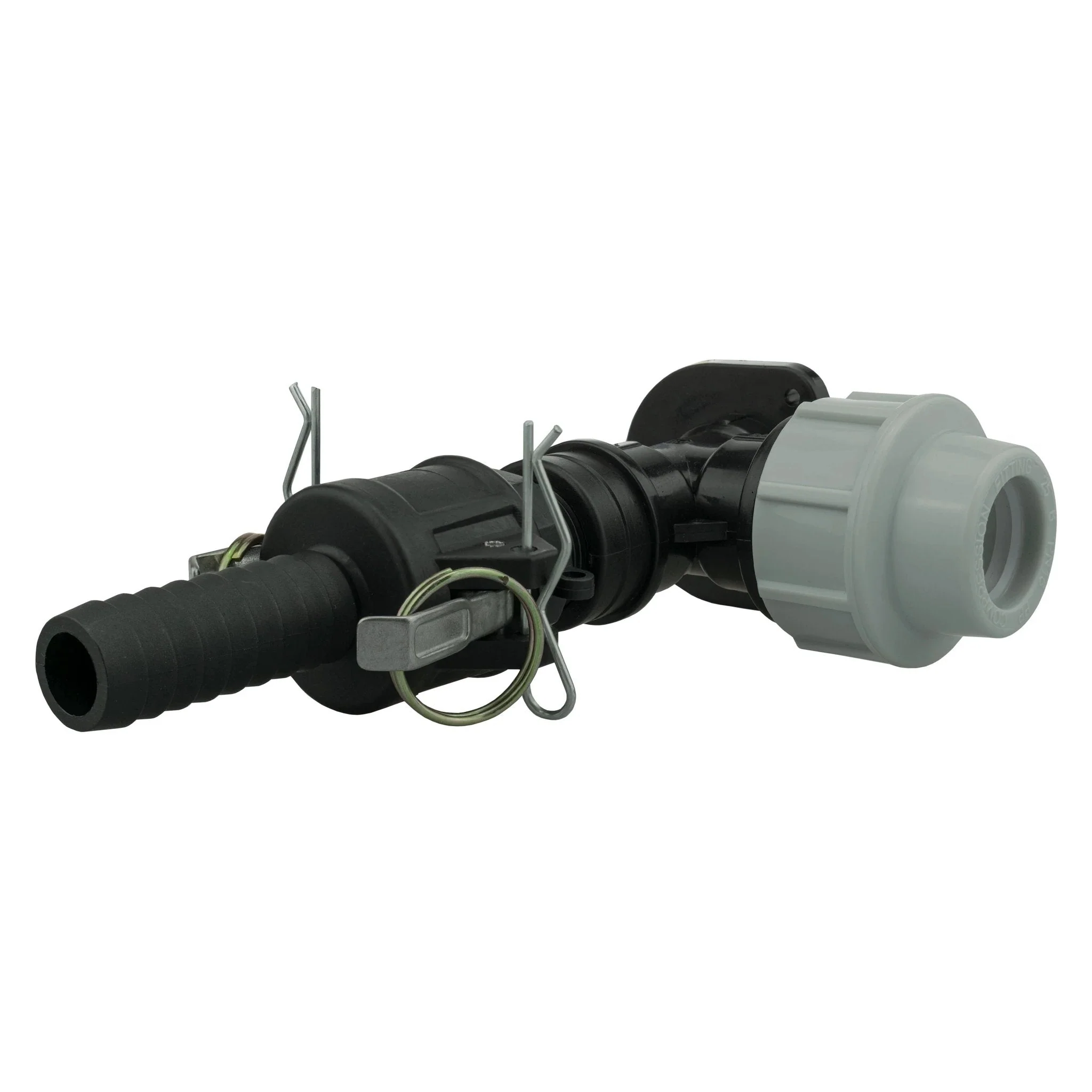

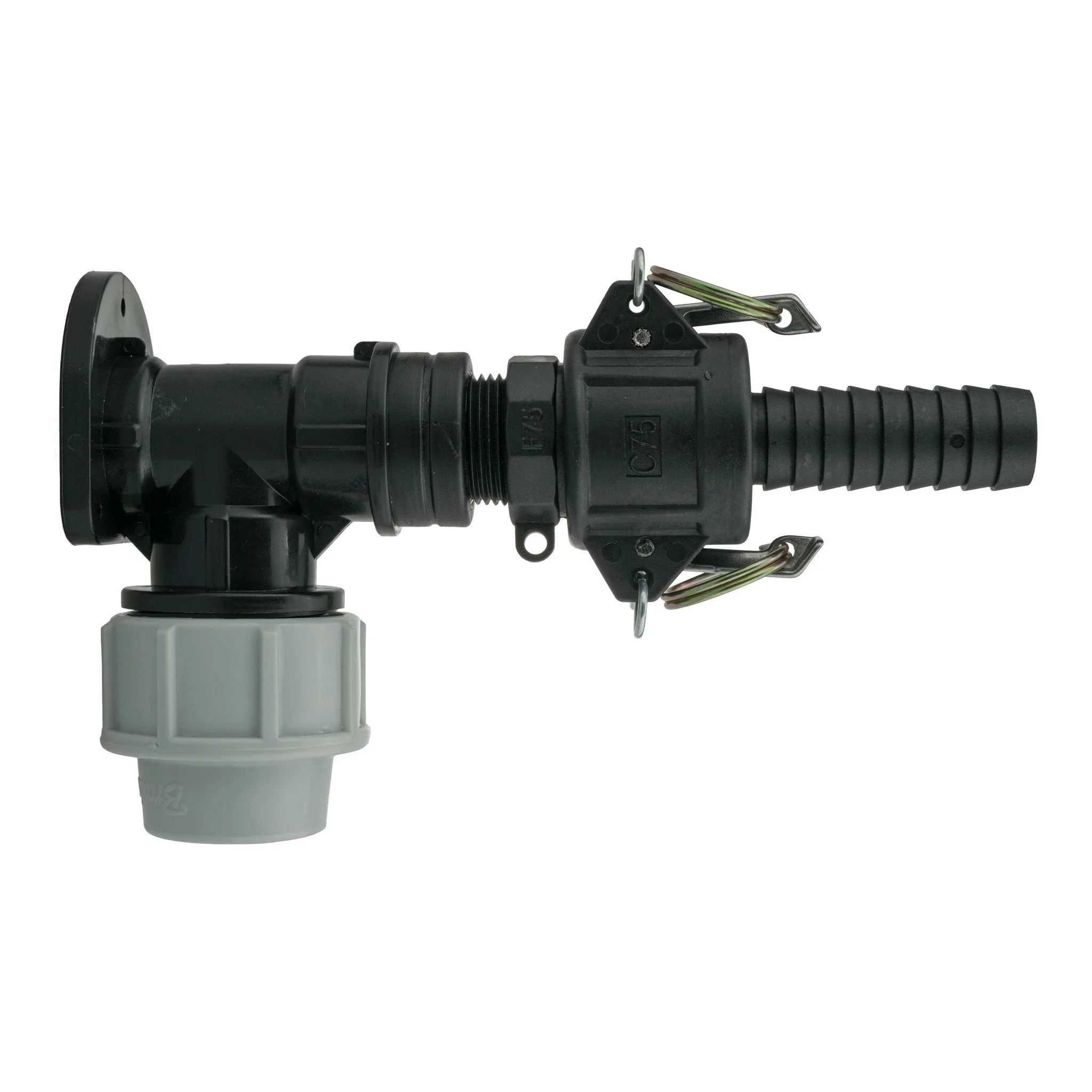

This Wall Flange Kit 32mm MDPE + ¾" Camlock Type F+C is a compact, ready-to-use connection set for MDPE piping, designed for tradespeople installing water, irrigation or light industrial lines. It combines a 32mm MDPE wall flange with two ¾" camlock couplings for quick, secure connections at wall outlets. Contents

• 1 x MDPE Wall Flange 32mm – ¾” BSP (MDPEWF32-34BSPF)
• 1 x Camlock Type C ¾” (CAMTC34)
• 1 x Camlock Type F ¾” (CAMTF34)

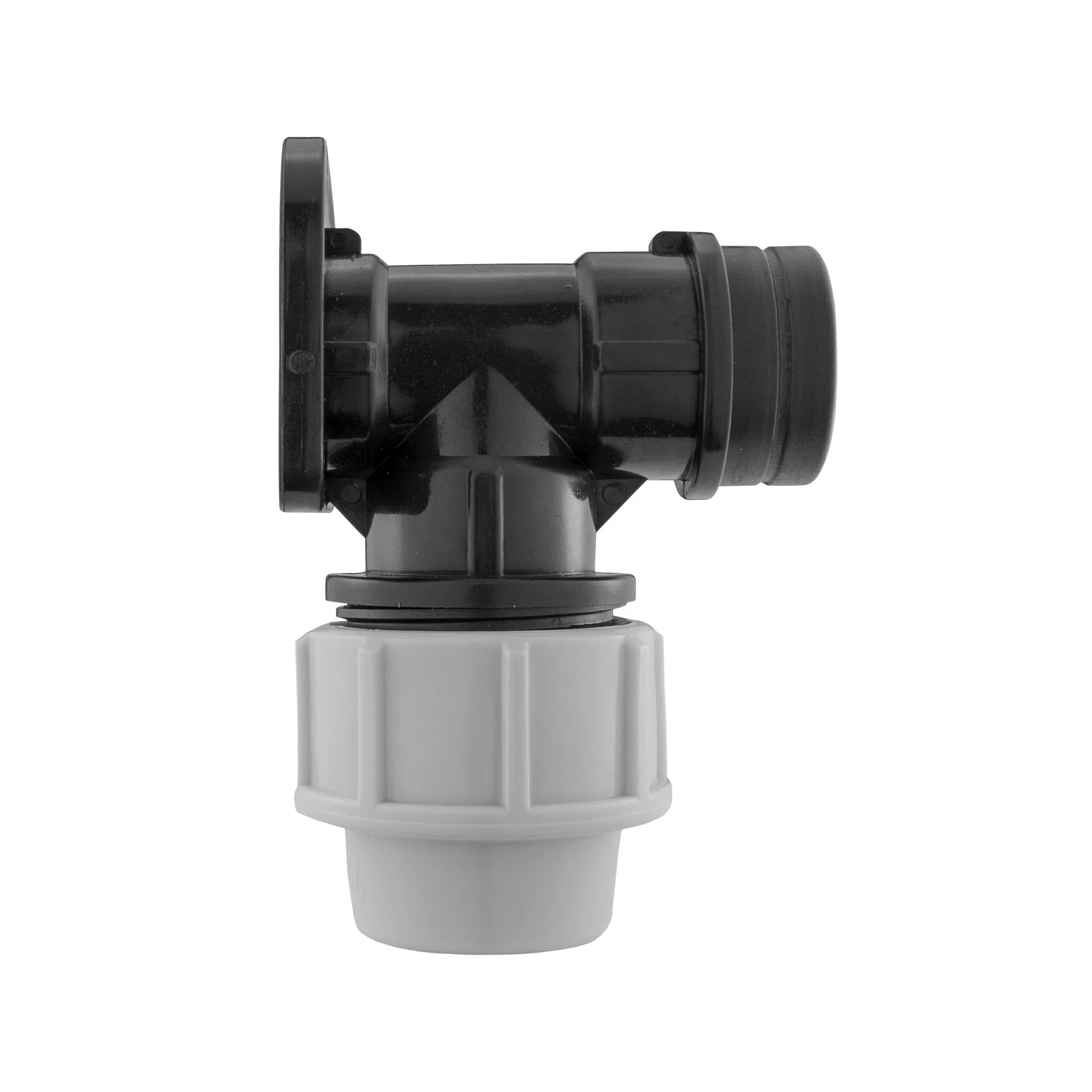

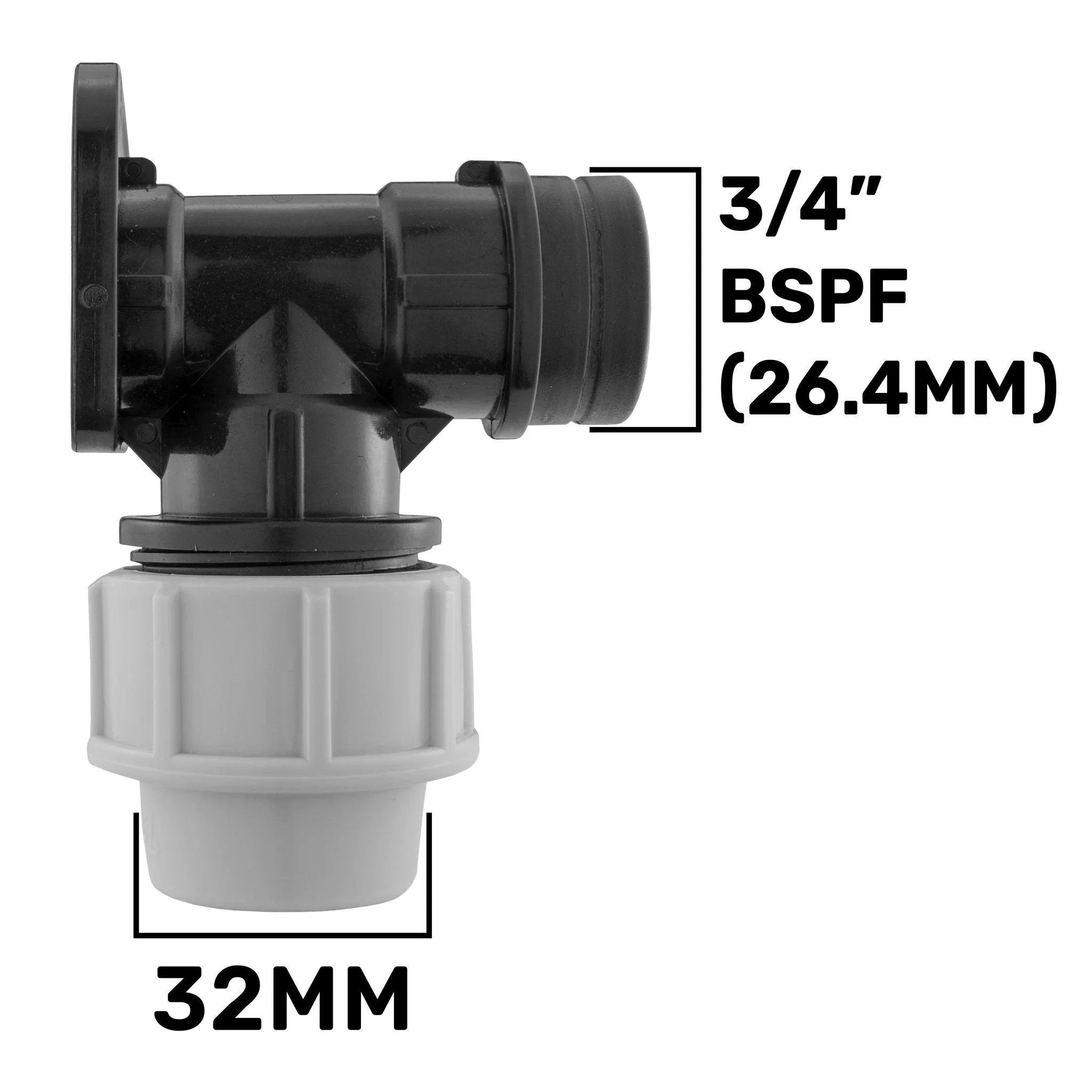

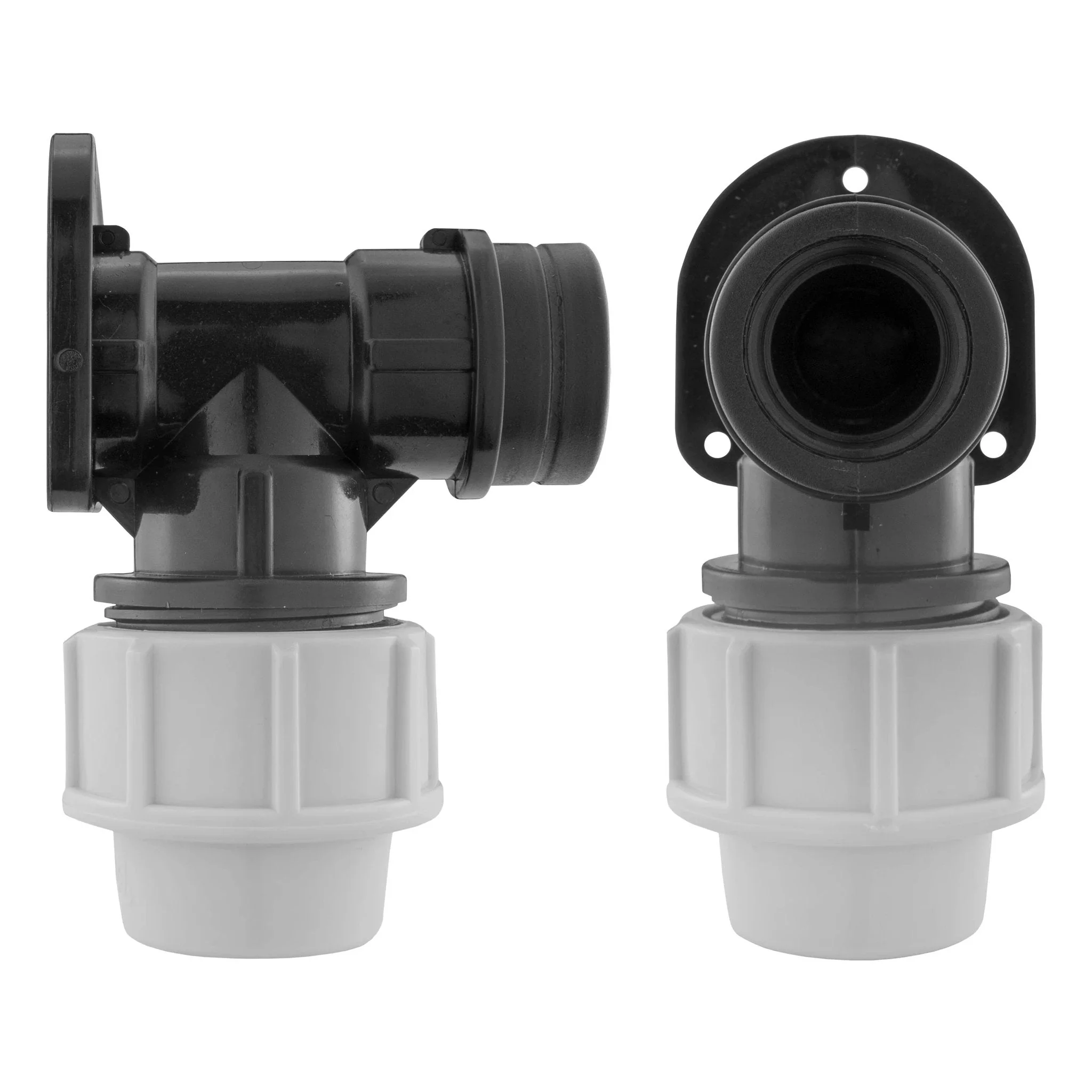

MDPE overview and spec MDPE fittings are used to connect MDPE pipes in water supply, irrigation and some industrial applications. The included wall flange provides a secure outlet mounted to a flat surface, while the 32mm pipe size aligns with standard MDPE 32mm systems. MDPE PN10 fittings are rated to withstand up to 10 bar (approximately 145 psi) under suitable conditions, offering a dependable balance of strength and flexibility in outdoor or exposed environments. The material is noted for durability and resistance to common chemicals and weathering, contributing to longevity with minimal maintenance. Camlock couplings and usage The kit includes Camlock Type C (female camlock with hose shank) and Type F (male threaded) connectors, both at ¾" size. Camlocks, or cam and groove fittings, enable rapid, tool-free connections and disconnections, which can reduce downtime when changing hoses or piping configurations. The fittings are made from polypropylene; suitability should be checked for your specific fluid, temperature and exposure conditions. The combination of Type C and Type F allows straightforward transitions between hose, pipe and threaded fittings in a single kit. Installation notes and practical tips - Ensure the MDPE pipe length and preparation meet standard 32mm MDPE practices before inserting into the wall flange compression connection. - The kit does not include PTFE tape; if threads require sealing beyond the compression connection, plan to source PTFE tape separately. - Verify fluid compatibility with polypropylene camlock fittings for your application, particularly if chemicals, fuels or elevated temperatures are involved. Who this is for Ideal for tradespeople fitting external wall outlets for MDPE water or drainage lines, irrigation installers, and small-scale industrial liquid transfer setups needing a compact wall connection with quick-connect camlocks. This kit provides a practical, field-ready solution with clearly defined components and straightforward assembly.
