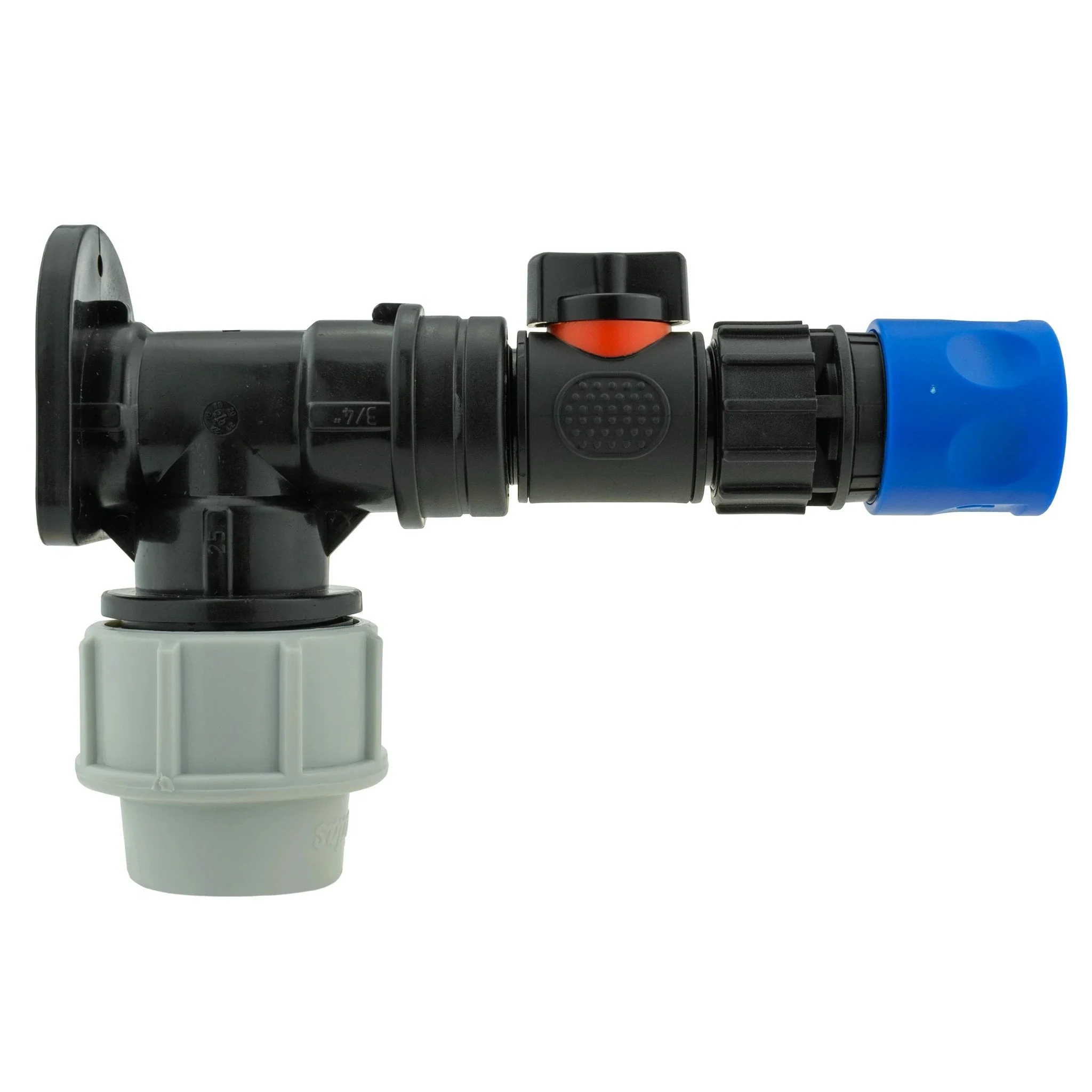

The Wall Flange Kit 25mm MDPE + In-Line Valve & Female Quick Connector is a practical MDPE piping solution for water supply, irrigation and light industrial use. It combines a 25mm MDPE wall flange, a ¾" BSP inline valve and a female connector in one ready-to-fit package, designed for secure, tidy terminations against a flat surface.

• MDPE Wall Flange 25mm – ¾" BSP (MDPEWF25-34BSPF)
• In-Line Valve ¾" BSPM (HCV34BSPM001BLACK)
• Female Hose Connector with ¾" BSPF Thread (EXPAND34BSPF-FEM001B)

Key features and benefits

• PN10 rated MDPE fittings: capable of withstanding up to 10 bar (approximately 145 psi), suitable for standard cold-water networks.
• Threaded compression connections: allow a tight, reliable seal without the need for heat fusion or specialist tools.
• Lightweight, corrosion‑resistant plastic construction: durable for outdoor and exposed applications with low maintenance needs.
• 3/4" BSP connections on all components: straightforward compatibility with MDPE piping and common hose fittings.
• Wall flange inclusion: enables neat mounting to flat surfaces and helps stabilise the pipe run at the termination point.
• In-Line Soft Touch Valve: smooth turn on/off operation for precise flow control and reduced wear.

Ideal uses and practical applications

• Water supply lines feeding external taps, garden irrigation systems, and peripheral equipment where a stable, surface-mounted termination is beneficial.
• Light industrial or commercial projects requiring a compact, easy-to-assemble MDPE connection with a controllable flow path.

Installation tips

• Cut MDPE pipe square, insert into the wall flange and inline valve fittings, then tighten using standard wrenches to the recommended torque.
• Ensure BSP threads are clean and use appropriate PTFE tape or thread sealant where specified by the component manufacturer.
• Mount the wall flange to a solid surface to minimise movement and protect the joint from strain.
