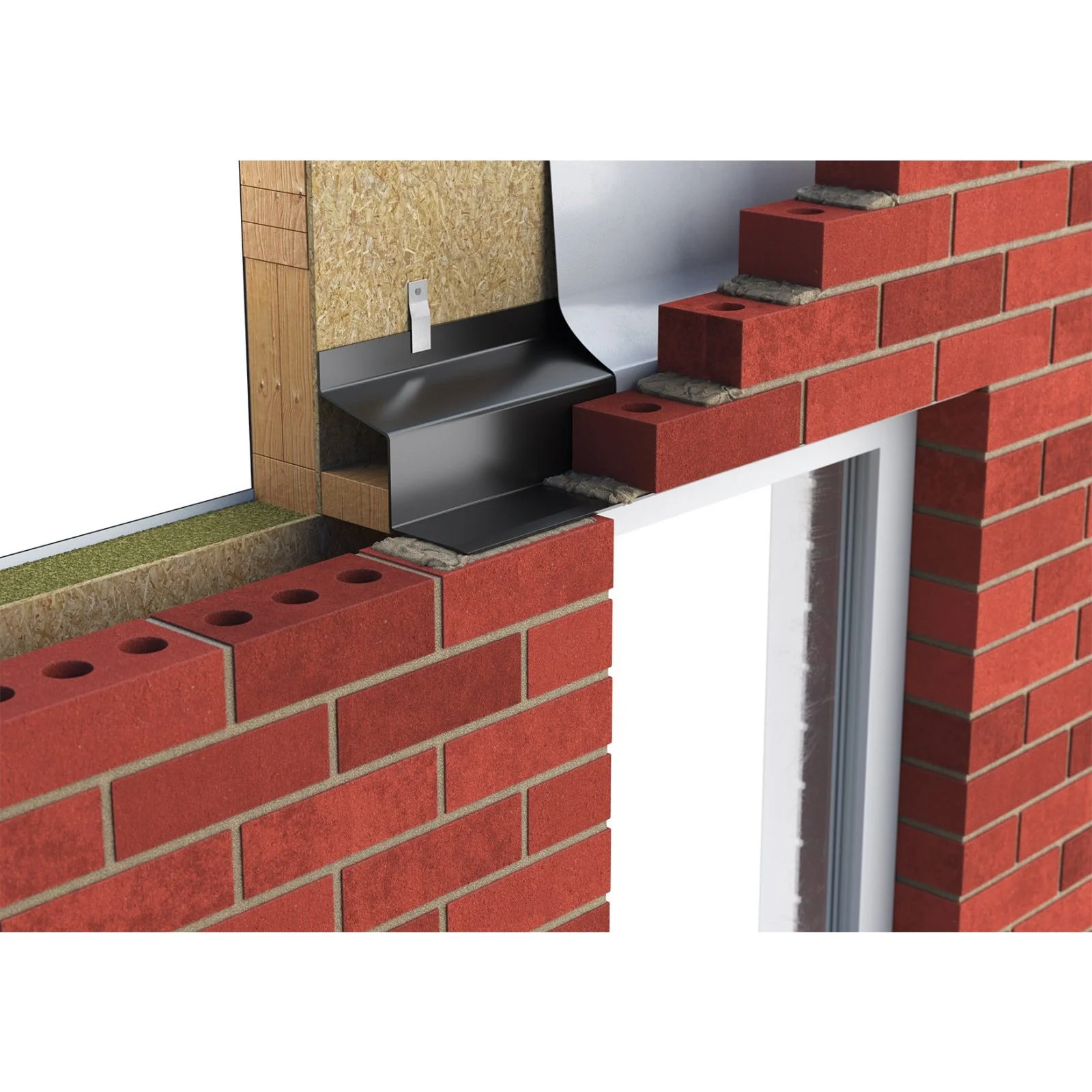

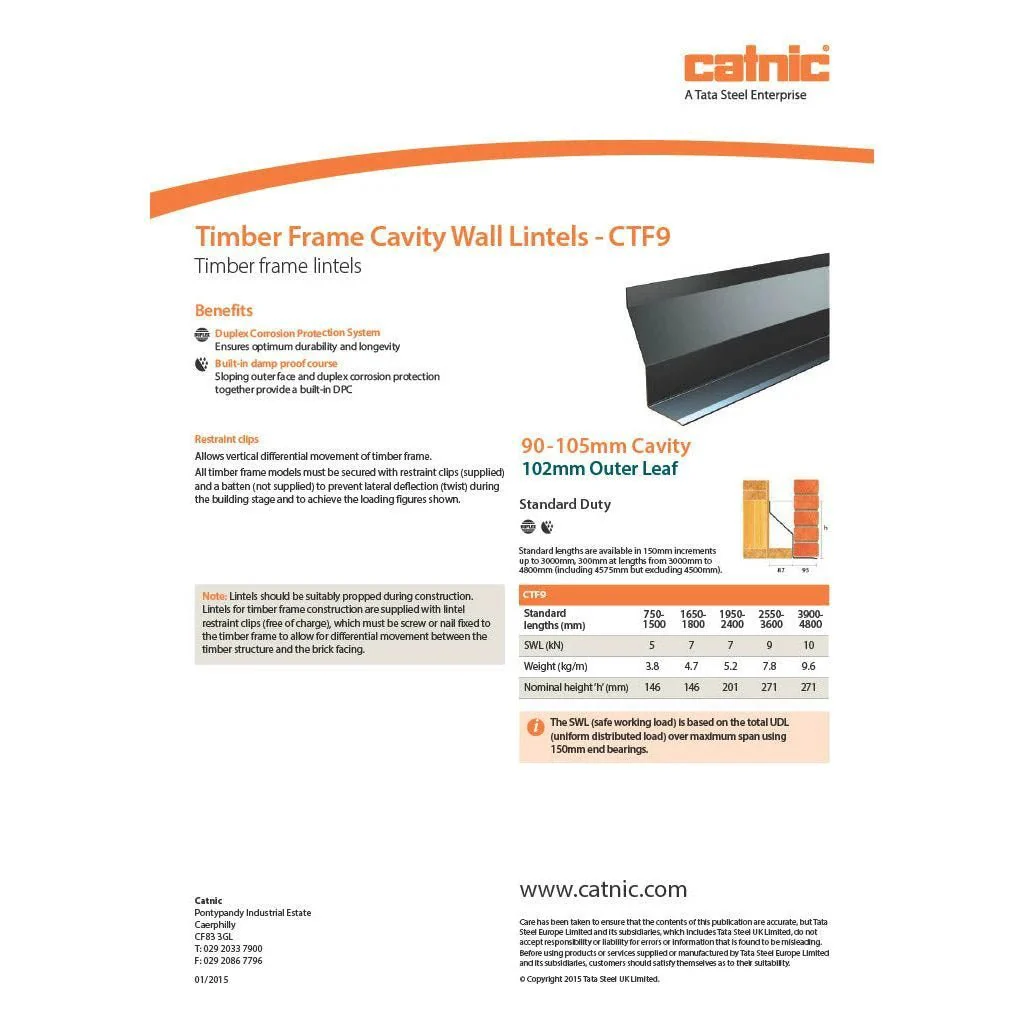

Catnic Timber Frame Lintel CTF9 90-105mm
Product Benefits
- Duplex Corrosion Protection
- Built-in DPC

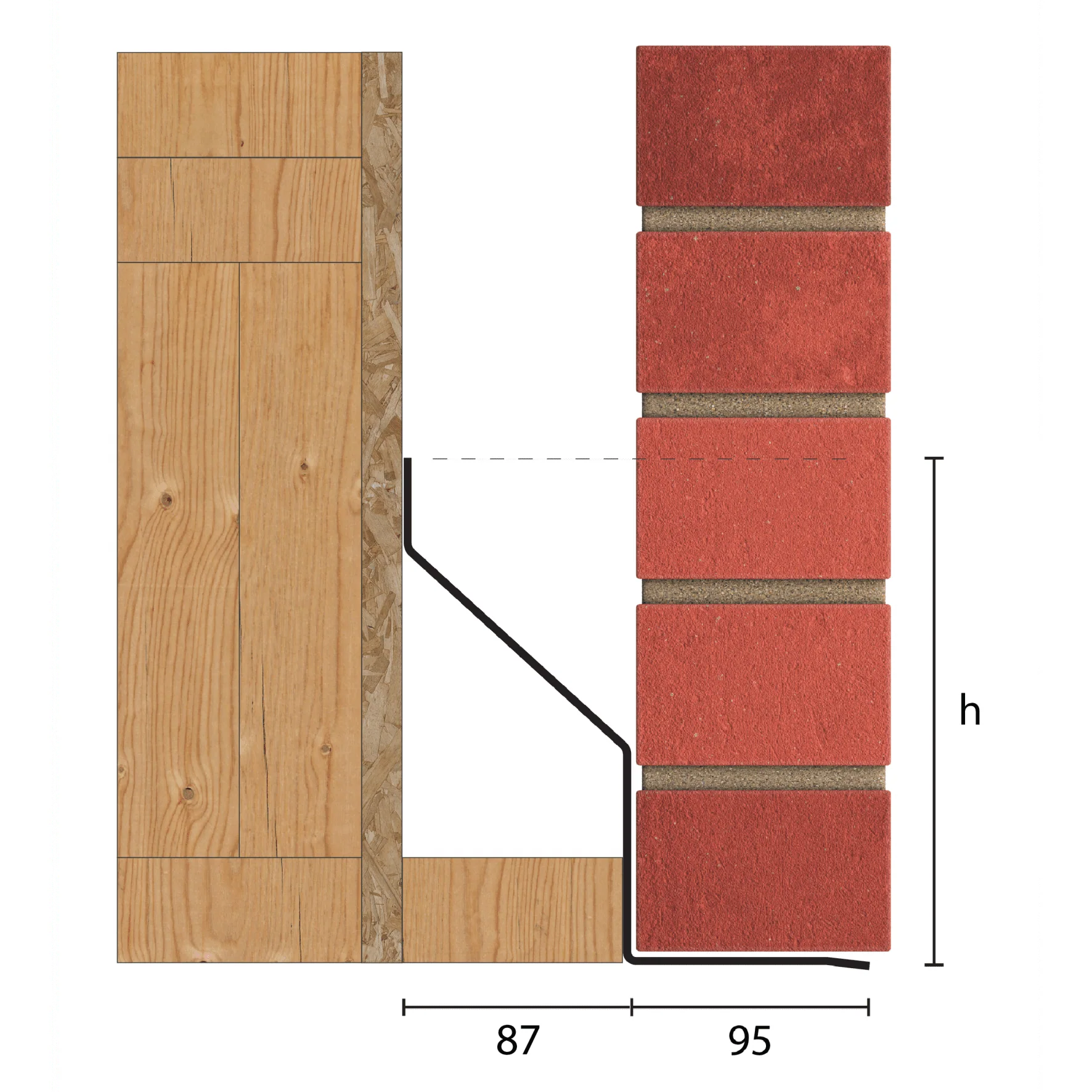

| Standard Lengths (mm) | SWL (kN) | Weight (kg/m) | Nominal height 'h' (mm) | |
|---|---|---|---|---|
| 750 - 1500 | 5 | 3.8 | 146 | |
| 1650 - 1800 | 7 | 4.7 | 146 | |
| 1950 - 2400 | 7 | 5.2 | 201 | |
| 2550 - 3600 | 9 | 7.8 | 271 | |
| 3900 - 4800 | 10 | 9.6 | 271 |
- Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- All timber frame models must be secured with restraint clips (supplied) and a batten (not supplied) to prevent lateral deflection (twist) during the building stage to achieve the loading figures shown.
- Timber frame lintels should be suitable propped during construction.
